Wet Weather Overflow Screens Delivered to Porirua Wastewater Retention Project

September 3, 2024

Hydroflux recently supplied several stormwater overflow screens as part of the Porirua Wastewater Retention Tank Project. The new facility will manage peak flows during extreme wet weather events – the new concrete 7000kL capacity retention tank will provide retention prior to gradual release of stormwater/wastewater to the sewer network at a flow that the wastewater treatment plant can manage.

Project Highlights

  • 70m x 20m x 7m concrete storage tank
  • Elimination of overflows during extreme wet weather, leading to a cleaner harbour and coastal waters
  • Design, supply and delivery of two (2) HUBER RoK1/500 storm screens rated at 840 L/s each
  • Custom adjustable height to manage variable weir levels

Technology Highlights

  • High efficiency 6mm 2-dimensional screening
  • Low headloss design
  • Easy to retrofit to existing infrastructure (a number of diameters and lengths are available)
  • Proven in 5000+ installations around the world with several in New Zealand
  • All stainless-steel construction

Applications

  • Inlet Works Overflows
  • River Discharges
  • Stormwater Tanks

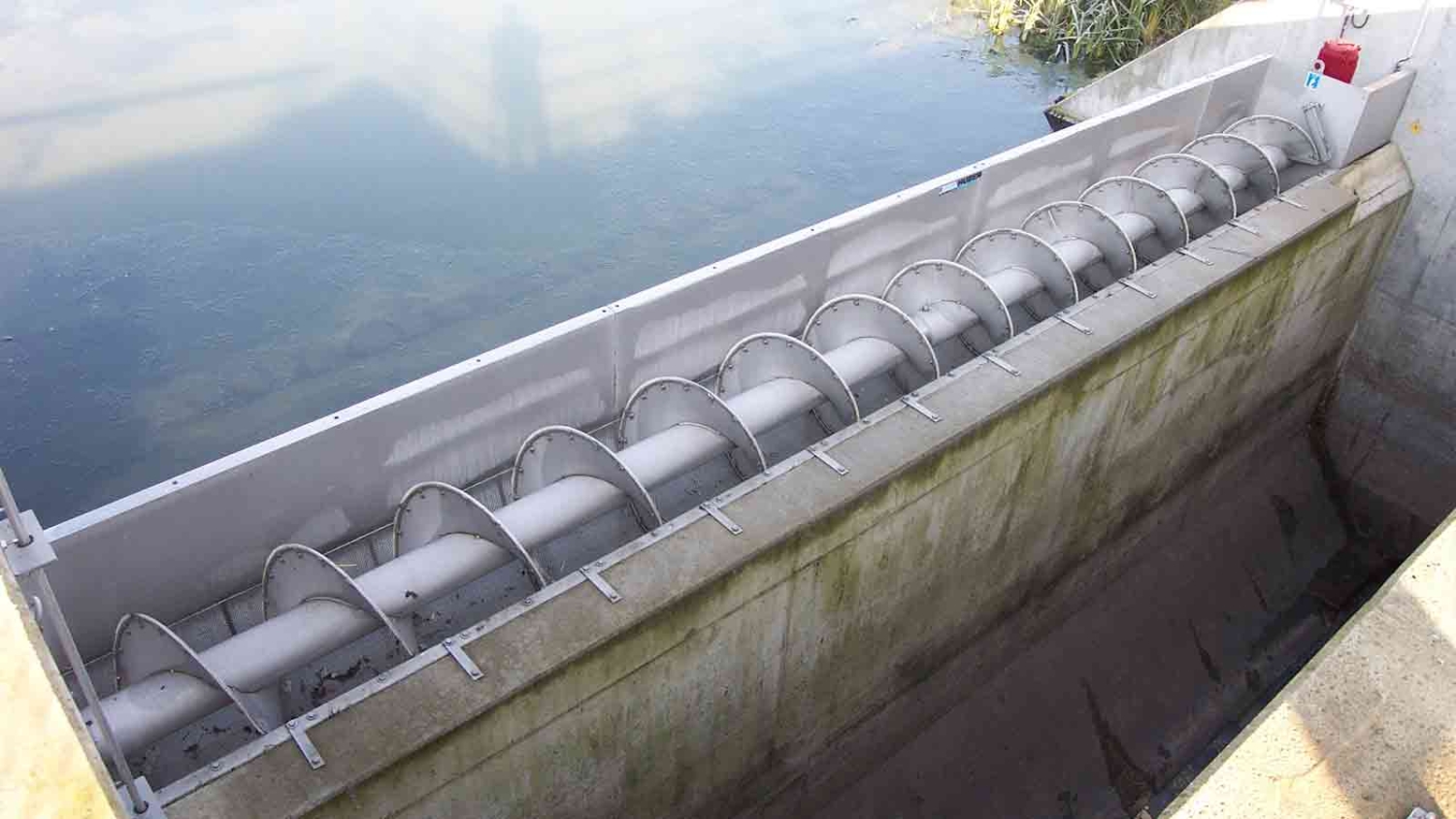

HUBER RoK1 is a horizontal storm screen that is installed downstream of an overflow weir. The screen uses two dimensional perforations in a U section design that provides high screening efficiency – a shafted screw with the U trough is used to transport screenings to the discharge point.

To learn more about the HUBER RoK1 please CLICK HERE or contact Hydroflux on 1300 417 697.

About the Hydroflux Group

The Hydroflux Group aims to deliver the highest level of engineering and scientific know-how to the emerging issues of sustainability, climate adaptation and environmental protection with a specific focus on water and wastewater.

As part of its vision and mission, Hydroflux has always taken its climate responsibility seriously. In 2022, Hydroflux became Australia’s first water treatment and technology company to achieve Climate Active carbon neutral certification for its organisation and products. It knows that partnering with customers and clients is the most significant impact it can have in its journey. The Group employs over 100 staff and operates throughout Australia, New Zealand and the Pacific Islands, with office locations in Sydney, Melbourne, Brisbane, Perth, Auckland, Suva and Portsmouth.
